Detectors and retrofits
A wireless panel for the room you already run.
The EXPEED 3643N is the detector. The offer is the working package: panel, workstation, acquisition software and installation, matched to the X-ray system before you order.
Everything the room needs to take the first image.
The working set is the detector, workstation, software and installation, confirmed for your site.

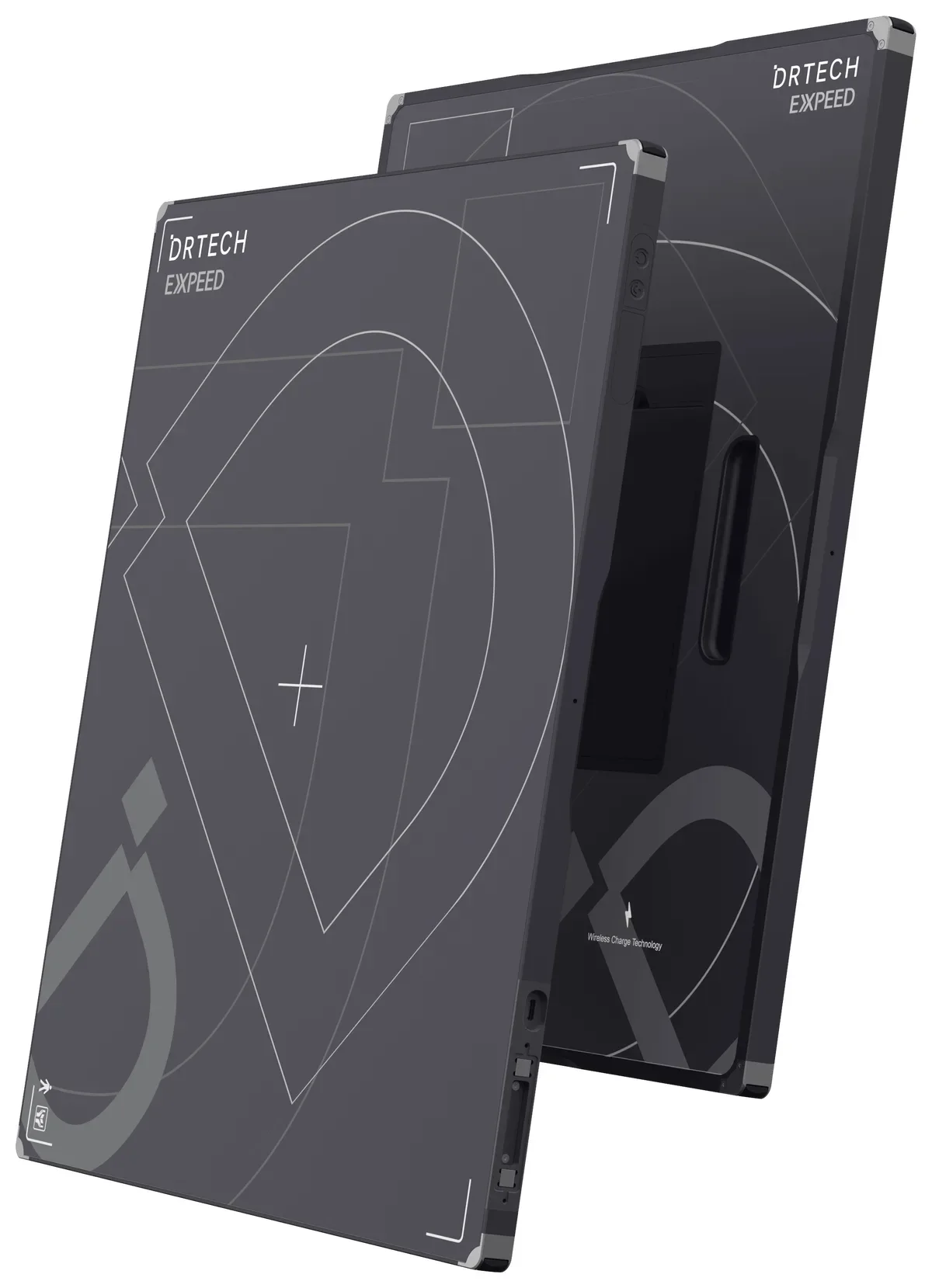

EXPEED 3643N · Wi-Fi 6 · digital AEC
The wireless panel. Wi-Fi 6 so it can leave the cable behind, and digital AEC so exposure control stays on the detector.
Workstation PC
Where the image lands. Configured for acquisition and ready for the room.
Acquisition software · VoyanceX
The screen the radiographer uses. VoyanceX is one option. The one for your site is chosen with the package.
On-site installation
Panacee fits it at the hospital or clinic, or your dealer does. The result is a working room.
For the hospital that owns the room, and the dealer who sells into it.
Hospitals and clinics
We install on site. After that: warranty support, an AMC if you want one, remote help, and a visit when the room needs a person. Terms depend on the product.
Dealers
Training and material so your team can explain the panel, plus help judging a prospect. Hospitals in your cities reach the right person.
Authorised DRTECH distributor in India through Global Imaging. Compatibility with your existing X-ray system is confirmed before ordering.
Specifications
Why the numbers are on the sheet.
a-Si glass with CsI · 140 µm · 2,560 × 3,072The image is made here. CsI on a-Si glass is how the exposure becomes a digital image.
| Panel | a-Si glass with CsI scintillator |
|---|---|
| Pixel pitch | 140 µm |
| Resolution | 2,560 × 3,072 pixels |
386 × 460 × 15.5 mm · 2.8 kg · IP68Light, thin, and sealed. One person can carry it, and dust and fluid in the room are already in the rating.
| Dimensions | 386 × 460 × 15.5 mm |
|---|---|
| Weight | 2.8 kg |
| Dust & water resistance | IP68 |

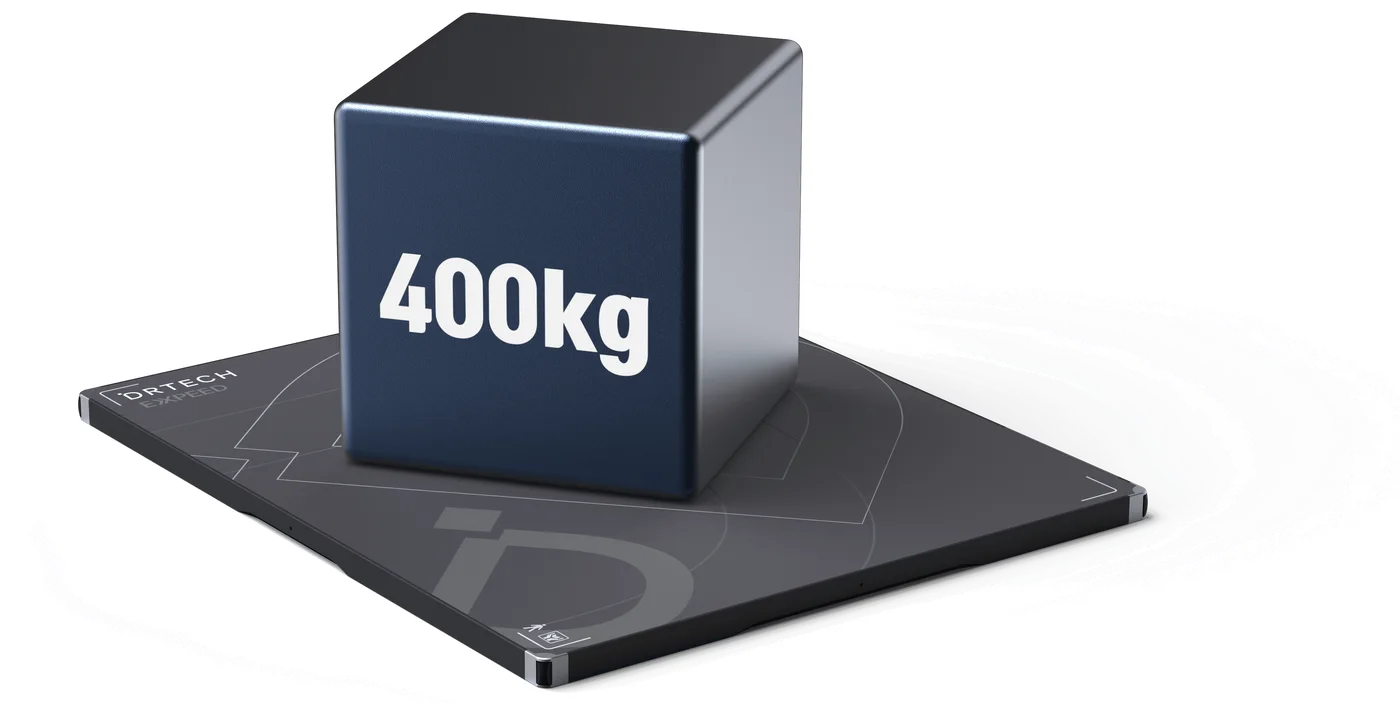

400 kg uniform · 200 kg localThe panel takes the patient on the table. Uniform load is spread across the surface. Local load is a point on the panel.
| Load | 400 kg uniform · 200 kg local |
|---|

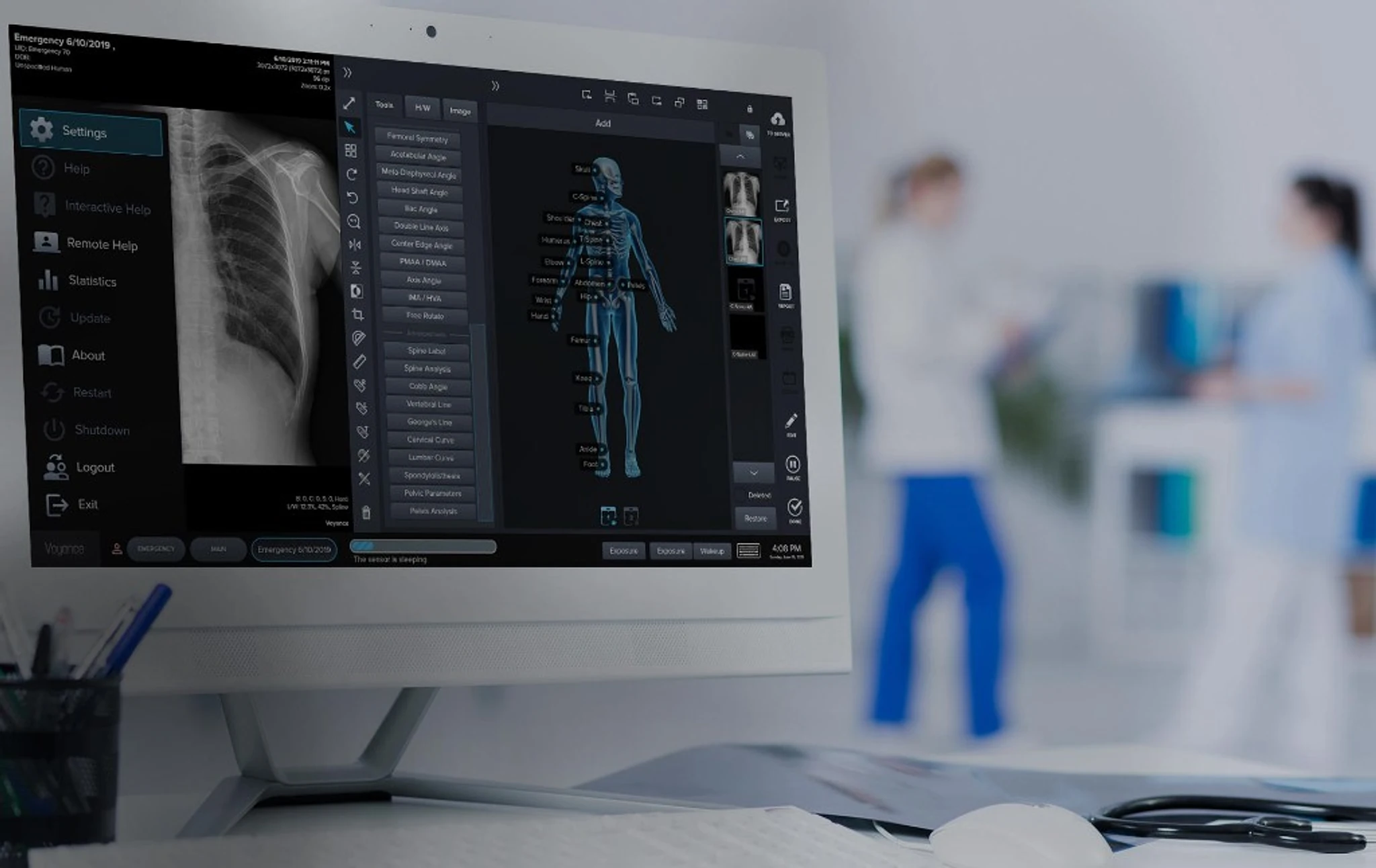

Preview 1 s · acquisition ≤ 3 s · cycle ≤ 4 s · digital AECFast enough for a list. A 1 second preview lets the radiographer check position before the patient moves. Digital AEC keeps exposure control on the panel.
| Image timing | Cycle time ≤ 4 s · Preview 1 s · Acquisition ≤ 3 s |
|---|---|
| Exposure control | Digital AEC |
Wi-Fi 6 · 8 h operating · 12 h standbyUntethered, and still charged. Wi-Fi 6 is why there is no cable across the room. Eight hours operating is a patient list. Twelve hours standby is the panel waiting between patients.
| Interface | Wi-Fi 6 (IEEE 802.11ax)Gigabit Ethernet via USB-C to LAN adapter |
|---|---|
| Battery | Operating time 8 hours · Standby 12 hours |
Specifications are from DRTECH's EXPEED N Series documentation. Load rating is 400 kg uniform and 200 kg local. Final configuration and compatibility with your existing X-ray system should be confirmed with Panacee before ordering.
EXPEED 3643N questions.
Is the EXPEED 3643N sold as a detector only?
Panacee supplies it as an upgrade package: the detector, a workstation PC and acquisition software, matched to your X-ray system.
Which acquisition software is included?
VoyanceX is one option. The software for your site is chosen with the package.
Will it work with our current X-ray system?
Send the existing system and the location. Panacee confirms compatibility before ordering.
What are the published 3643N specifications?
a-Si glass with CsI, 140 µm, 2,560 × 3,072 pixels, 386 × 460 × 15.5 mm, 2.8 kg, load 400 kg uniform and 200 kg local, IP68, cycle time ≤ 4 s, preview 1 s, acquisition ≤ 3 s, Wi-Fi 6 plus Gigabit Ethernet via USB-C to LAN, digital AEC, 8 hours operating and 12 hours standby.
Ask about a detector.
Tell us the system you have and the detector size you need. A person replies directly.
Prefer to talk? Call +91 96509 00190 or WhatsApp.
See if the 3643N fits your room.
Share your location and existing X-ray system. We confirm compatibility and the package.
